Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range

Name: Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range
Brand: Minfeng
Price: 0.1 USD

Quality Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range for sale

Brand Name : Minfeng

Model Number : submersible pump cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Temperature Range : -40℃~+90℃

Insulating Type : EPR/NBR

Cores : 1-5

Manufacturer : Minfeng Cable Group

Standard : IEC, BS, ICEA, CSA, NF, AS-NZS

Cable Size : 1.5-800mm2/18-10awg

Usage : submersible pump cable

Standards : BS,DIN and ICEA upon request

Cable Mark : Printing or Embossing

Contact Now

Waterproof Flat Rubber 3-4 Core Submersible Water Deep Well Pump Flat Power Cable

Product Overview

This submersible water pump cable features EPR (Ethylene Propylene Rubber) insulation for excellent resistance to water, chemicals, and heat, ensuring reliable performance in submersible applications. The flexible copper conductor allows for easy installation and bending in tight spaces and complex installations.

EPR insulation provides excellent water, chemical, and heat resistance
Flexible copper conductor for easy installation and bending
Wide working temperature range: -40°C to 90°C
Suitable for various environmental conditions from cold to hot

Product Specifications

Size	1.5-800mm² / 18-10 AWG
Conductor Material	Copper
Insulation Material	Rubber
Jacket	Rubber
Application	Industrial
Type	Low & Medium Voltage
Voltage	450/750V, 0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV
Working Temperature	-40°C to 90°C
Conductor	Flexible Copper
Insulation	EPR/NBR
Sheath	PCP/CPE
MOQ	100m
Warranty	1 Year

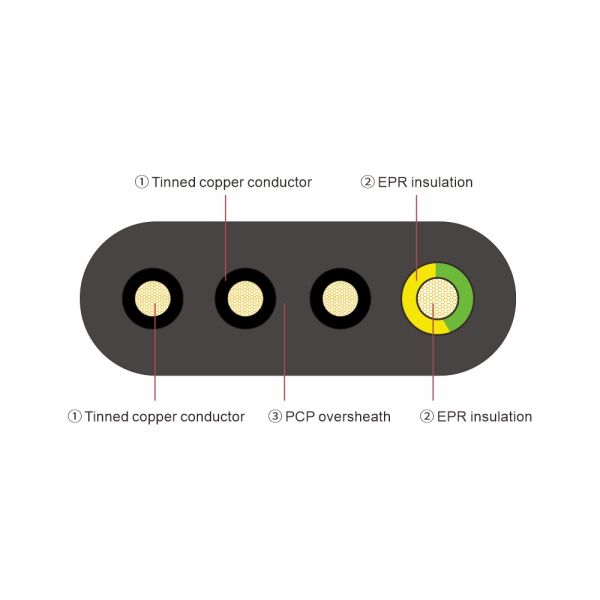

Detailed Features

Conductor: Class 5 flexible plain copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: PCP (Polychloroprene)
Cores: 1, 2, 3, 4, 5 cores or others
Voltage: 450/750V, 300/500V
Temperature Rating: Conductor operation temperature -40°C to +60°C (90°C max)

Applications

This submersible water pump cable is suitable for various types of lead wires for submersible motors (from underwater to above-water). The product can be equipped with a waterproof joint and features convenient use with excellent waterproof properties. Even with external damage, it guarantees the motor is protected from water damage.

Technical Specifications

Flat Submersible Water Pump Cables Parameter

Conductor Size AWG	No of Conductor	Nos of Dia. Of Wire MM	Ground Conductor Size AWG	Core Dia MM	Nominal Sheath Thickness MM
14	3	41×0.254	14	3.85	1.15
12	3	65×0.254	12	4.5	1.15
10	3	105×0.254	10	5.3	1.15
8	3	168×0.254	10	6.5	1.4
6	3	226×0.254	8	8	2
4	3	420×0.254	8	10.1	2
2	3	665×0.254	6	11.3	2.2
1	3	817×0.254	6	13.6	2.2
1/0	3	1045×0.254	6	15.6	2.2
2/0	3	1330×0.254	6	18	2.2

JHS Round Submersible Water Pump Cable Parameter

Conductor Nominal Area Sq. mm.	Nos. & Dia. of Wire Nos./mm	Nominal Core Dia 3 Core mm	Approx. Overall Dimensions of double Sheathed Cable 3 Core mm	Approx. Overall Dimensions of double Sheathed Cable 4 Core mm	Current Rating at 40°C Amps
1.5	22/0.30	3.25	10	10.8	14
2.5	36/0.30	3.84	11	12.5	18
4	56/0.30	4.5	13	14.1	26
6	84/0.30	5.3	14.6	16	31
10	140/0.30	6.5	18	20.35	42
16	224/0.30	8	21.2	23.4	57
25	350/0.30	10.1	26	28.8	72
35	490/0.30	11.3	28.3	31.5	90
50	703/0.30	13.6	33.5	37.3	115
70	988/0.30	15.3	37.8	42.2	143
95	1349/0.30	18	43.5	48.8	165

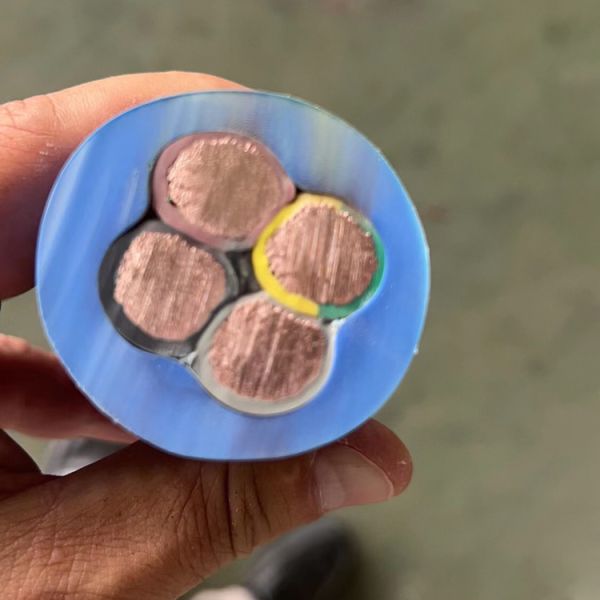

Product Images

Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range

Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Images
